DRS-520CE

Manual

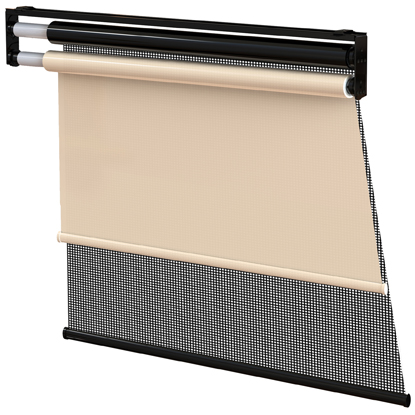

Dual Roller Shades

Application:
Double roller system for A-frame/angled front driver area windows to provide sun protection during day time as well as privacy and comfort during night time.

Description:
Slow-rise, spring operated double roller shades with easily adjustable upper end positions and shade speed for a controlled ascent.

Specifications

  • Aluminum mounting rail, dimmension 40.5mm (1 5/8") wide x 8.4mm (5/16") high in standard mill finish or optional black powder-coated.
  • Steel snap-in fastening brackets placed 20-30" o.c.
  • Black powder-coated solid steel side-mounting brackets with external wheels in black delrin for adjusting of upper end-position as well as spring tension to regulate ascent speed.
  • Extruded aluminum fabric-roll-up tubes, made of 6063-T5 alloy.
  • Powder-coated black or beige aluminum pull bars with matching end caps.
  • Internal spring systems with multi-position rotary clutches and decelerator mechanism.
  • Internal limiter mechanism for upper shade position setting.
  • Woven polyester sun-blocking screen as well as blackout privacy fabric that meet FMVSS-302 flammabillity standards.

Applications

Recreational Vehicles

RV OEMs select sun and mosquito protection for both practical and aesthetic reasons. AMS offers a variety of styles, colors, and vehicle-specific fittings to meet your needs.

Learn More

Related Products

Nick came by & I helped him with the install of a new motor on our solar shade in the front window. Nick was patient and knew exactly what to do. I was excited to get this repair done at the rally. Please let Nick and the company know how much I appreciate great customer service.

Douglas & Rita Karydas

I received the instructions and was able to reprogram to get the shades in sync.

Thank you very much.....I have never had such an immediate and complete response like this! You are to be commended for such quality service.
I appreciate it very much.

Tom & Mary Ann Reed

It’s been a long time since I got service like what three people who work with you gave me. They are Ewa Zajch, Nick Zolfaghari and a past worker Alex. They cared and listened and helped me, these people are hard to come by. I am very pleased.

Ken Van Winkle

Frequently Asked Questions

See all Frequently Asked Questions
All our products are sold only through Original Equipment Manufacturers as well as through authorized service dealers.
You will find them on our website under “Where To Buy”.
The cost of returning shades for repair where there is labour and parts involved would often be more expensive than ordering a new shade, which will be covered under a new warranty.
Trying to change shades yourself is not recommended and should be done by an authorized service dealer as you may otherwise forfeit the warranty on the product. However, after the warranty has expired and you feel expert enough in this field, then you could contact AMS through our website and request an installation manual as well as a motor user guide, if applicable, on how to set limit stops. Important: windshield shades should always be installed by a trained technician to avoid any safety issues.
